cleanup of the service mesh is important

We might encounter unnecessary CPU usage when all service get updated with information from all other services that’s not relevant

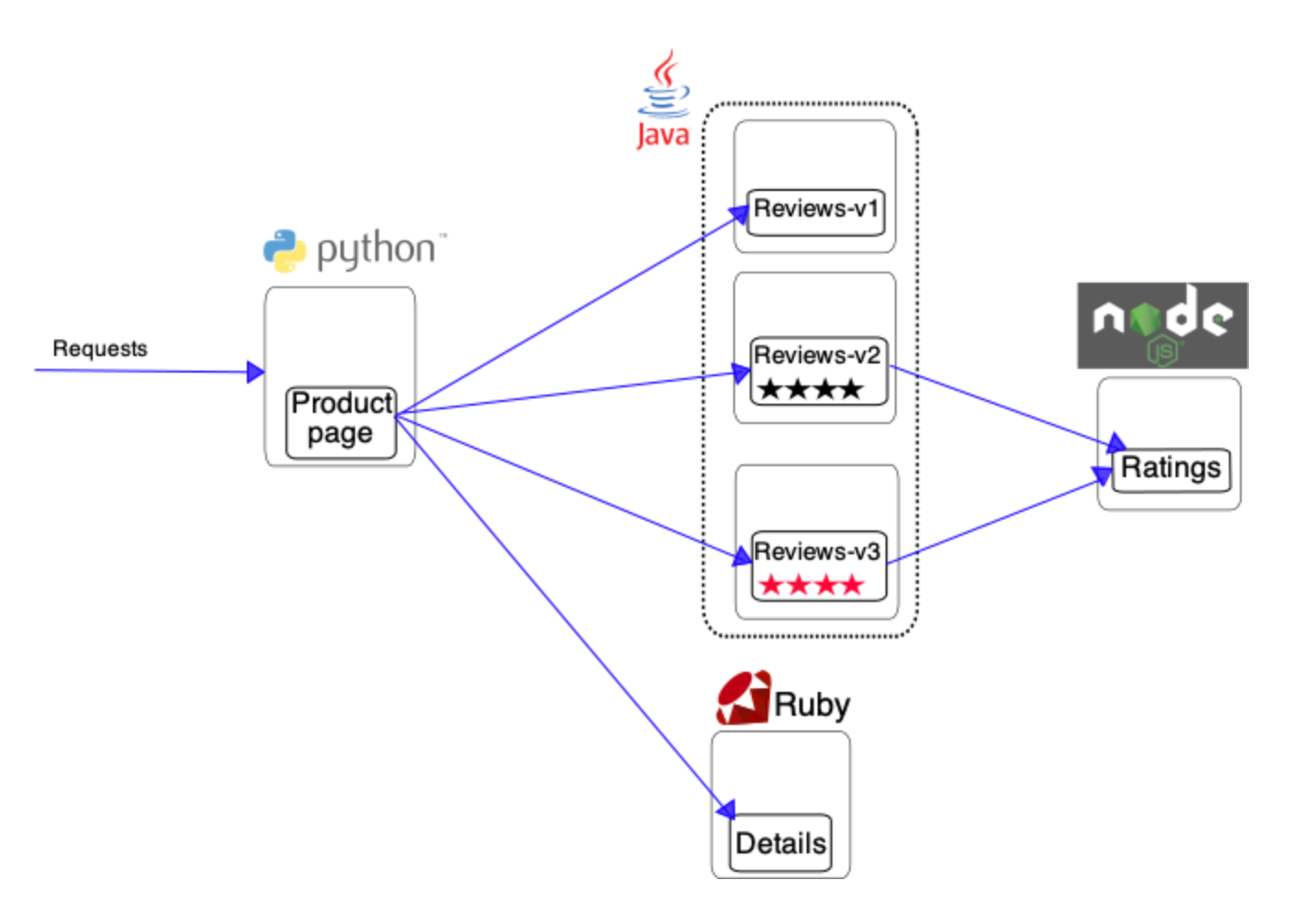

for example services in the istio bookInfo sample app Bookinfo

product page doesn’t need to know about ratings and likewise ratings only need to be updated on reviews-v1 and reviews-v2

if this is not organized and maintained, we hv 6x5 connections =30 connections and this is just with the few services. Optimized, we need only 6. That’s a whopping 80% off CPU processing.

run this to spy on the product page sidecar

istioctl proxy-config endpoints deploy/productpage-v1.default

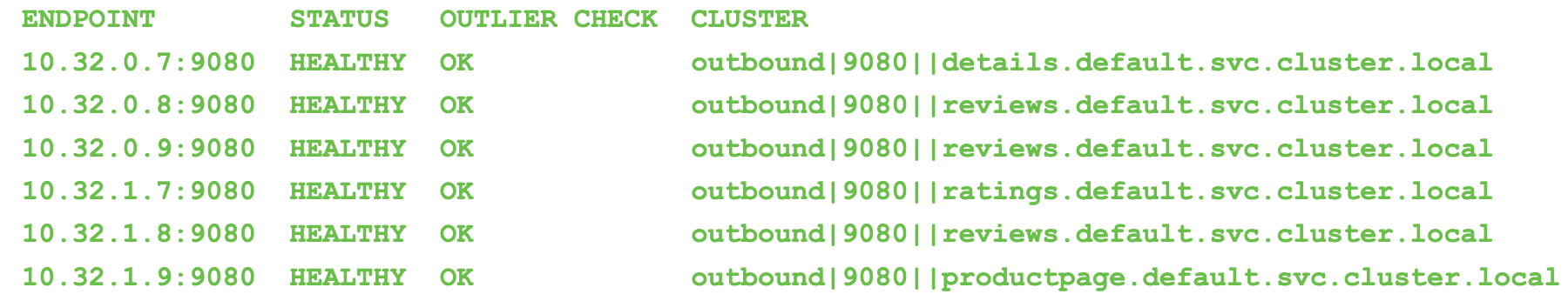

sidecar endpoint list

to prune it, do this

apiVersion: networking.istio.io/v1beta1
kind: Sidecar
metadata:
  name: productpage-sidecar
  namespace: default
spec:
  workloadSelector:
    labels:
      app: productpage
  egress:
  - hosts:
    - "./reviews.default.svc.cluster.local"
    - "./details.default.svc.cluster.local"
    - "istio-system/*"
---
apiVersion: networking.istio.io/v1beta1
kind: Sidecar
metadata: name: reviews-v1-sidecar
  namespace: default
spec:
  workloadSelector:
    labels:
      app: reviews
      version: v1
  egress:
  - hosts:
    - "istio-system/*"
---
apiVersion: networking.istio.io/v1beta1
kind: Sidecar
metadata:
  name: reviews-v2-sidecar
  namespace: default
spec:
  workloadSelector:
    labels:
      app: reviews
      version: v2
  egress:
  - hosts:
    - "./ratings.default.svc.cluster.local"
    - "istio-system/*"
---
apiVersion: networking.istio.io/v1beta1
kind: Sidecar
metadata:
  name: reviews-v3-sidecar
  namespace: default
spec:
  workloadSelector:
    labels:
      app: reviews
      version: v3
  egress:
  - hosts:
    - "./ratings.default.svc.cluster.local"
    - "istio-system/*"
---
apiVersion: networking.istio.io/v1beta1
kind: Sidecar
metadata:
  name: details-sidecar
  namespace: default
spec:
  workloadSelector:
    labels:
      app: details
  egress:
    - hosts:
      - "istio-system/*"
---
apiVersion: networking.istio.io/v1beta1
kind: Sidecar
metadata:
  name: ratings-sidecar
  namespace: default
spec:
  workloadSelector:
    labels:
      app: ratings
  egress:
  - hosts:
    - "istio-system/*"


the dire scenario is explained # Istio Feb Meetup/ Demo: Scaling Istio in Large Clusters by Auto-Generating Sidecars by Cathal Conroy

Summary

Notes

AFAIK cpu usage is not the only concern, memory usage is also a concern. The more connections, the more memory is used.
